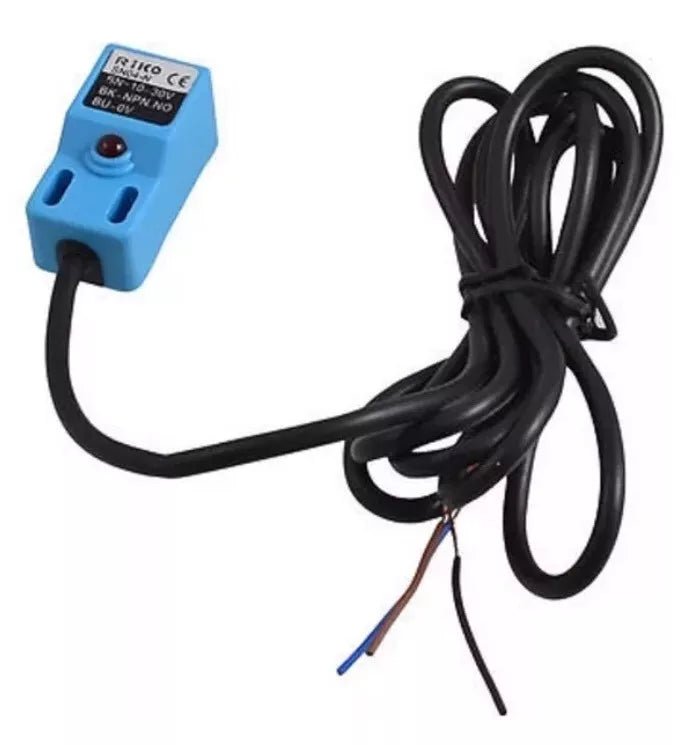

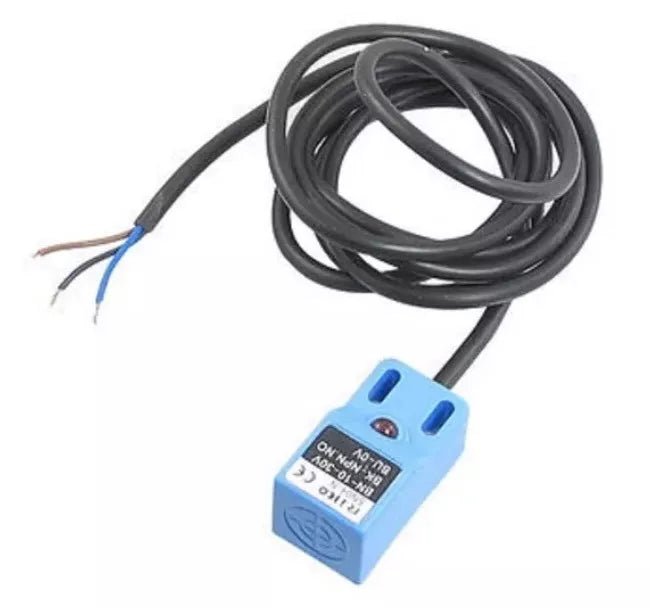

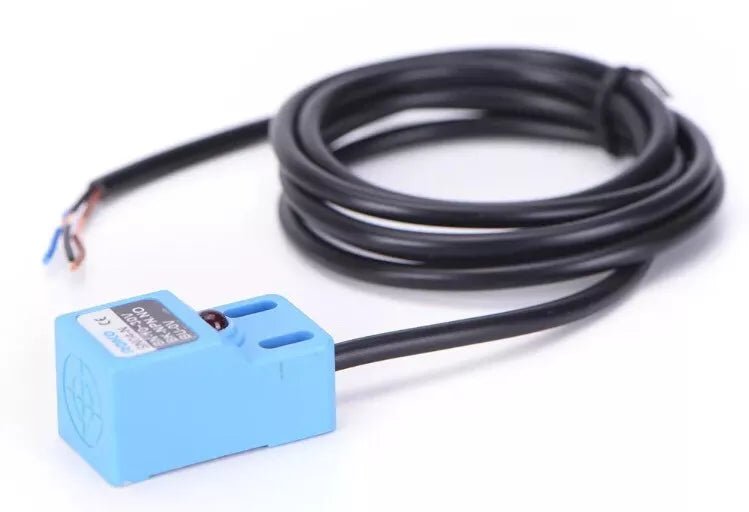

SN04-N NO 4mm Inductive Proximity Sensor Detection Switch NPN DC 10V-30V 3 Wire

SN04-N NO 4mm Inductive Proximity Sensor Detection Switch NPN DC 10V-30V 3 Wire

Characterized by DC 3 wire type, NPN, NO output type, when proximity switch is close to some target object, it will send out control signal.

Used widely in the machine tool industry, frequency counters and other automatic control system, etc.

Specifications:

• Product Name Proximity Switch Sensor
• Model SN04-N

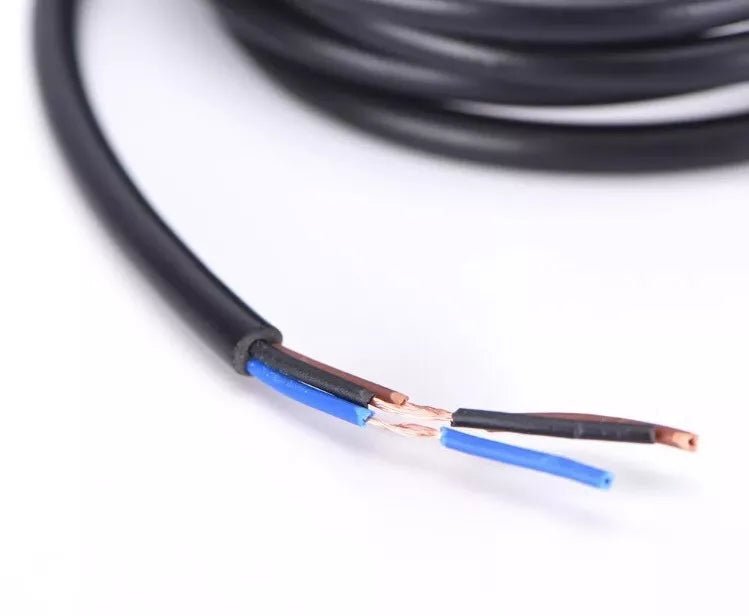

• Wire Type DC 3 Wire Type (Brown, Black, Blue)
• Theory Inductance Sensor
• Output Type NPN, NO
• Output Switching Transducer
• Sensing Distance 4mm
• Working Voltage 10-30V DC
• Response Frequency 500Hz max
• Indicator Red LED
• Size 36 x 18 x 18mm / 1.4 x 0.7 x 0.7 inch (L*W*H)
• Cable Length (Approx.) 100cm
• Hole Size 0.9 x 0.4cm (L*W)
• Material ABS
• Net Weight 34g
• Screws NOT included!
• Brand may very but product is identical

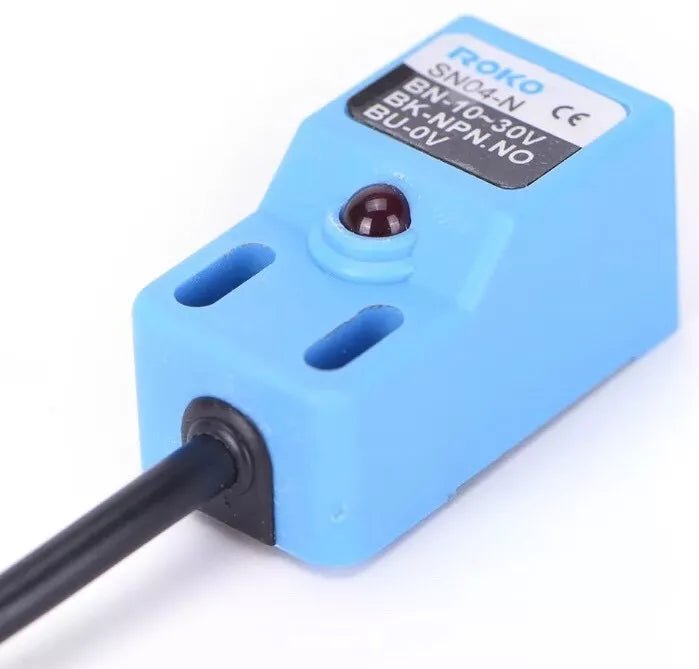

Wiring:

• Brown- 10-30VDC
• Black- NPN.NO
• Blue- 0V

Package Contents:

• 1x SN04-N NO 4mm Inductive Proximity Sensor Detection Switch NPN DC 10V-30V 3 Wire

(No retail packaging, No manual, No screws included)
