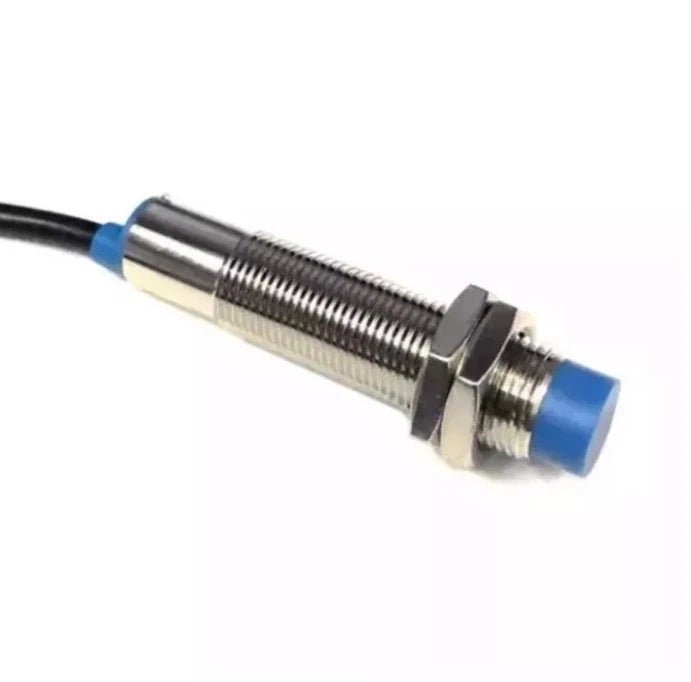

Inductive Proximity Sensor LJ12A3-4-Z/BX Metal Detecting NPN NO 3 Wire DC 6-36V

Inductive Proximity Sensor LJ12A3-4-Z/BX Metal Detecting NPN NO 3 Wire DC 6-36V

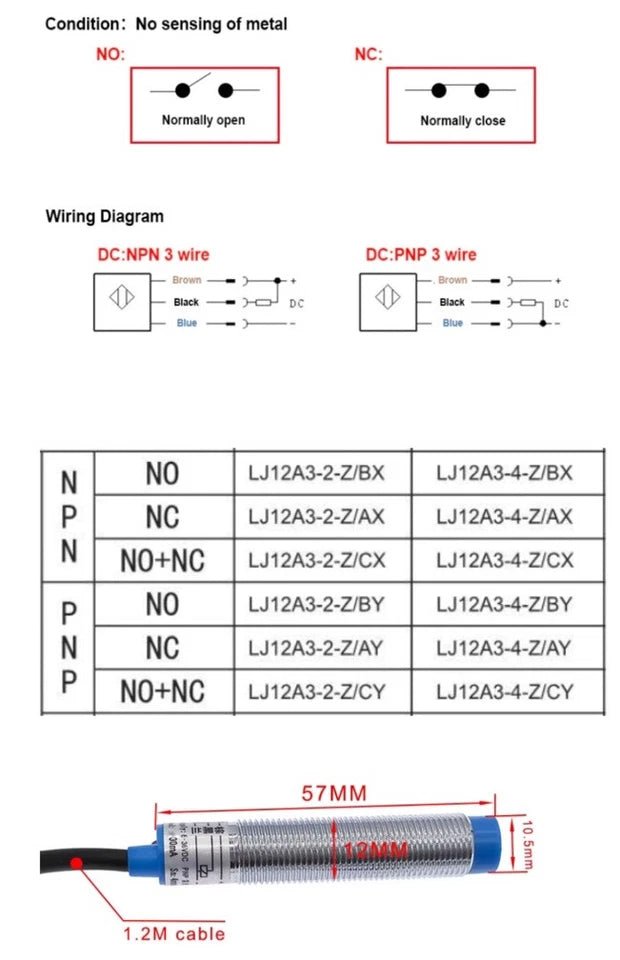

PLEASE CHECK your wiring is correct, incorrect wiring won’t trigger your device. See wiring layout below or in photos.

This is a module specifically designed to detect metal. The module

operates by inducing currents in metal objects and responding when it

occurs. These are commonly seen in 3d printers for auto levelling.

NOTE: there is no wiring sticker on the unit.

ITEM DESCRIPTION

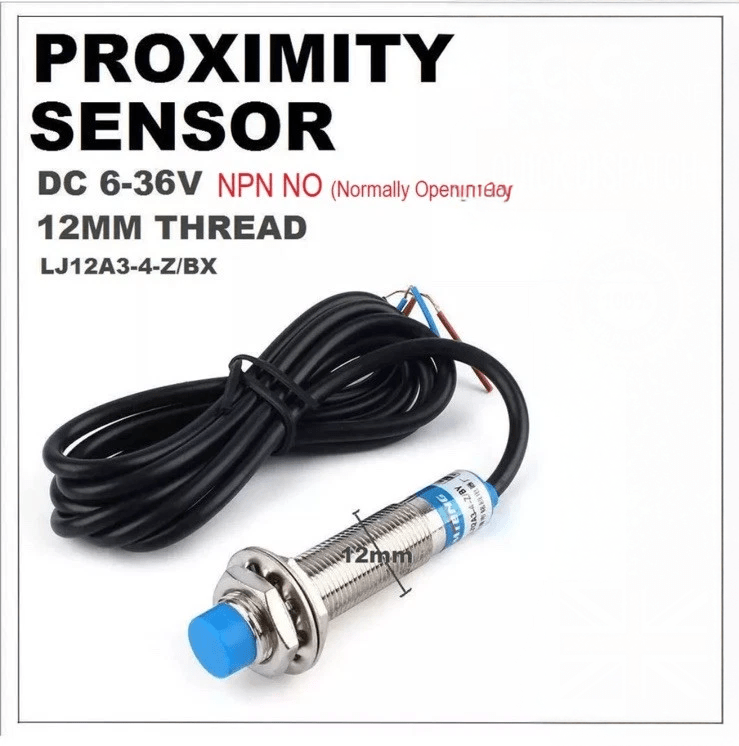

These Inductive Proximity Sensors are NPN normally Open Type 3 wire sensors with 12mm diameter thread and 4mm metal detecting range.

These sensors are widely used in 3D printers, Cnc machines and other industrial machines.

SPECIFICATIONS:

Model: LJ12A3-4-Z/BX

Output: NPN Normal Open

Working voltage: DC6-36V

Diameter: 12mm

Detection distance: 4mm±10%

Wire: 3 Wires

Detection objects: Metal (Iron / Aluminium)

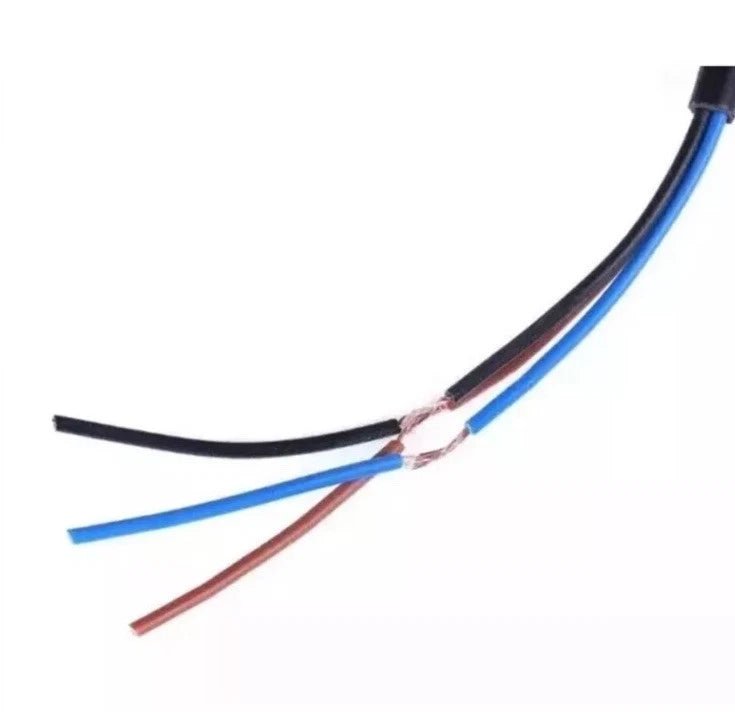

Wiring:

Brown VCC (+)

Blue Ground (-)

Black Trigger Signal

Package Includes:

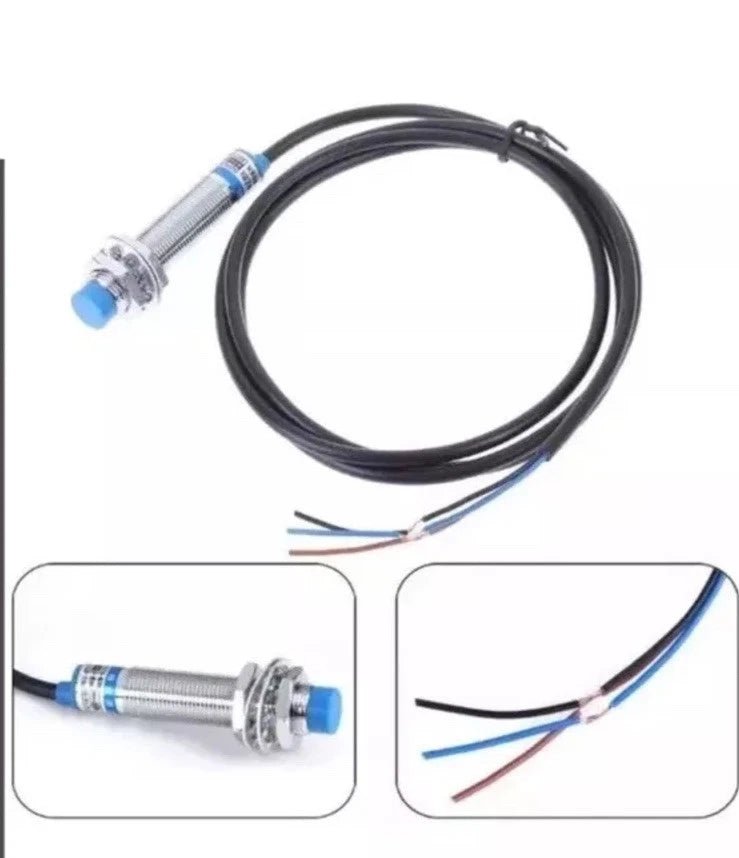

1x Inductive Proximity Sensor LJ12A3-4-Z/BX Metal Detecting NPN NO 3 Wire DC 6-36V

(No retail packaging. No manual)
