5V 12V 24V Single Self Locking Latching Bistable Interlock Relay Module Switch

5V 12V 24V Single Self Locking Latching Bistable Interlock Relay Module

This is a self locking, Low level input relay. when the low level (negative) signal is received the relay will trigger and hold until another signal is received which will unlatch the relay. the push button on the module can also trigger the relay.

Feature:

1. Versatile Usage: The relay module can be used to control various household appliances, lighting fixtures, and factory equipment, making it a valuable tool for a range of small-current high-voltage products.

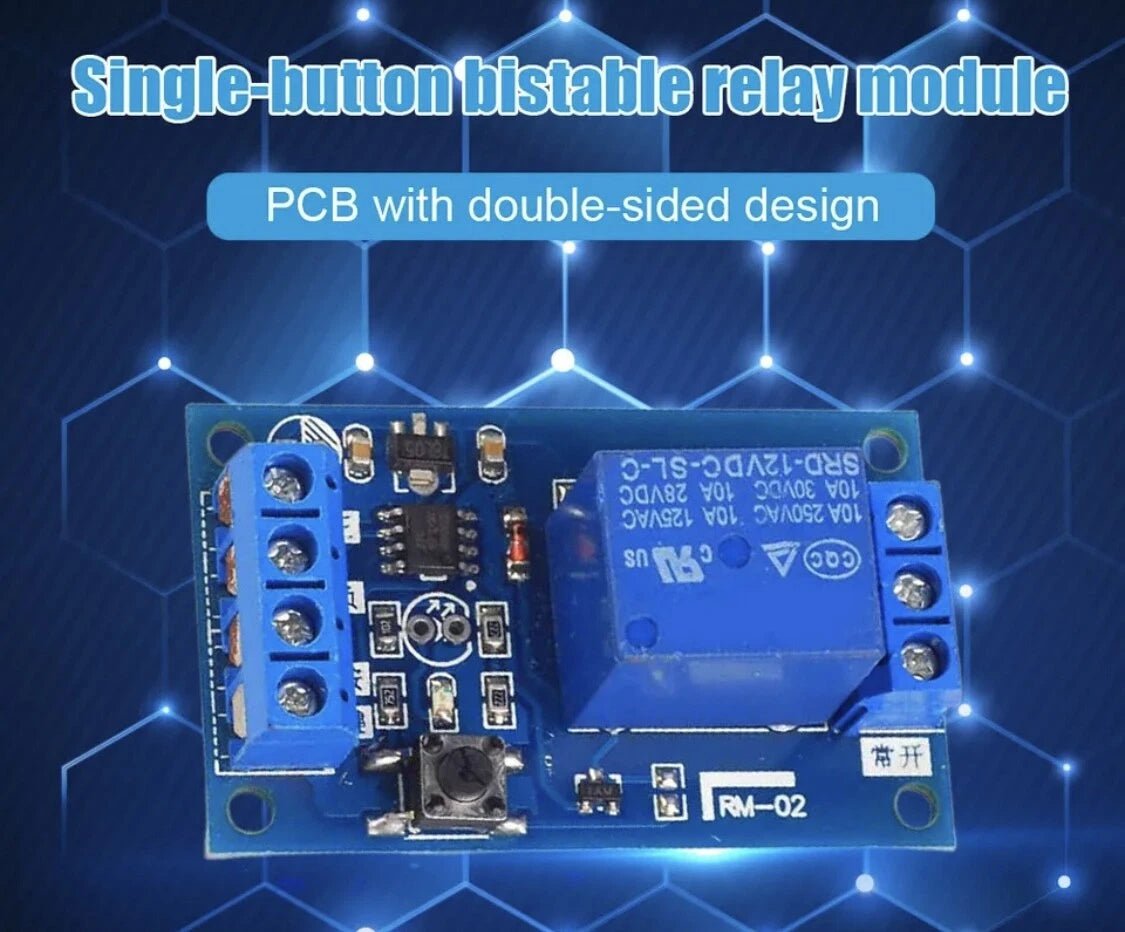

2. Reliable Performance: This module utilizes a double-sided PCB design, single-chip microcomputer control, and an anti-interference capability that makes it significantly more reliable than CD4013.

3. Powerful and Stable: With its large-power voltage regulator and sufficient heat dissipation holes, this module can work stably and reliably for long periods.

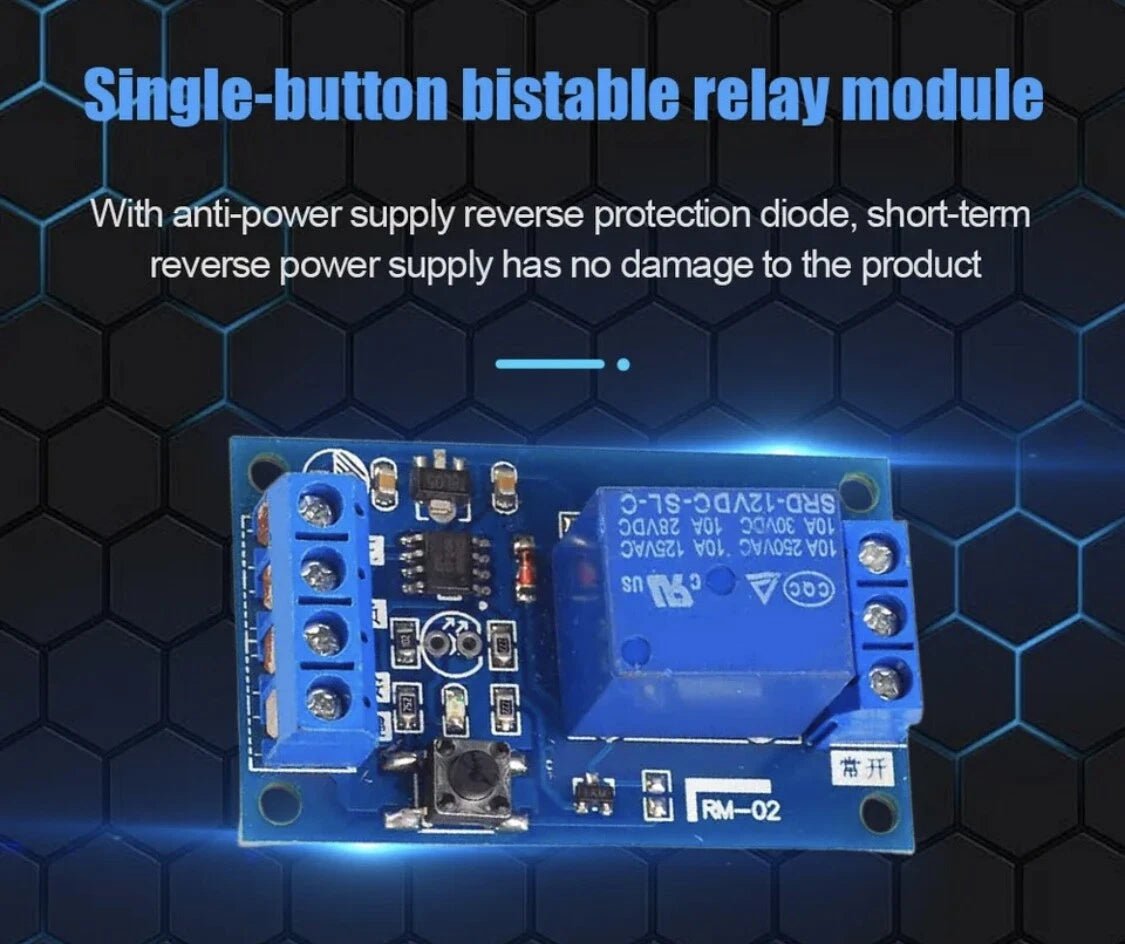

4. Safe and Protective: Equipped with a reverse power supply protection diode, this product can withstand short-term reverse power without damage.

5. Customizable Expansion: In addition to being triggered by touch switches, this module can also be triggered by external sensors that operate on low-level triggering, providing users with greater flexibility and functionality. Additionally, the product comes with a testing switch and connector, making it easy to test and use.

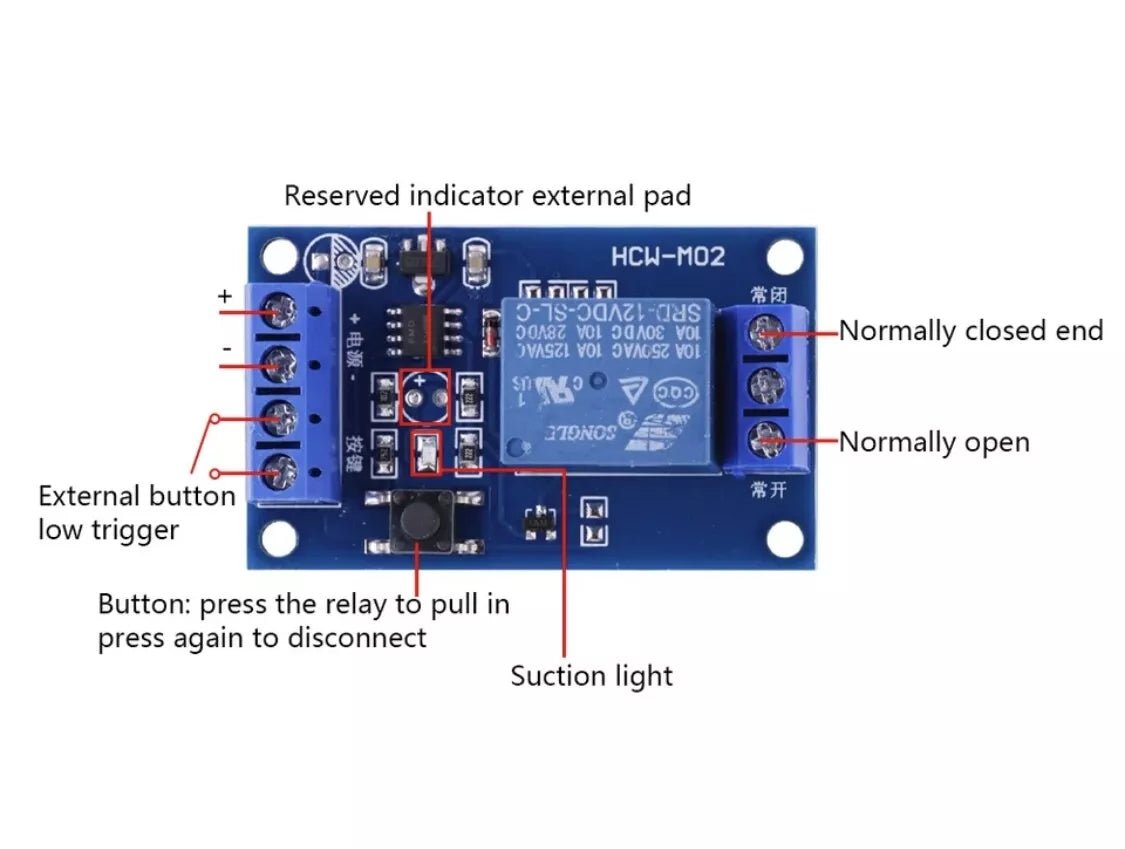

Note: No manual is included. see photos for wiring.

Specification:

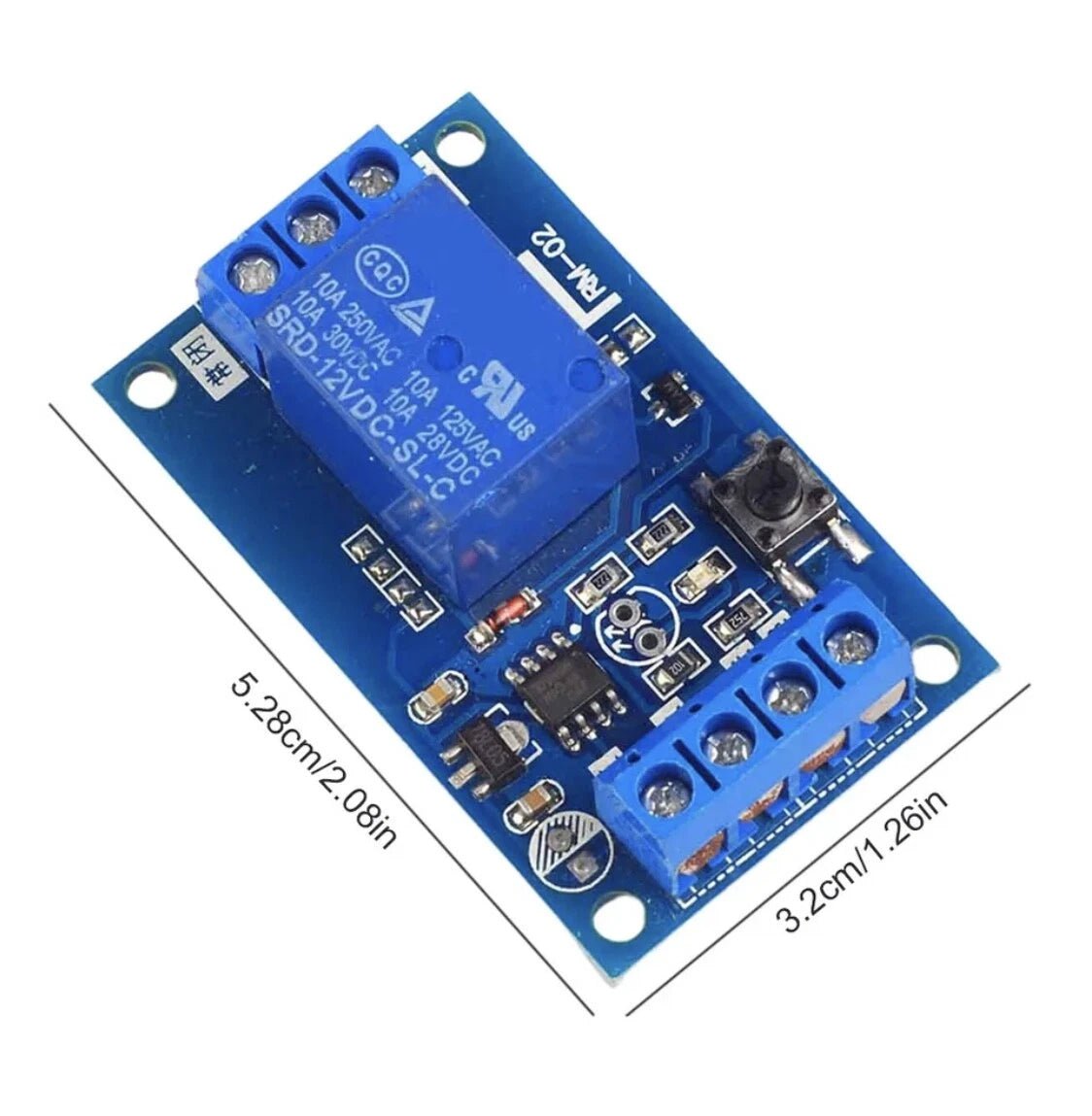

• Product size: About 52.8x32x18mm/2.07x1.25x0.71
• Coil voltage: 5V/12V/24V (Select from listing)

Instructions for use:

1. Connect the corresponding direct power supply according to the voltage version

2. According to the requirements of the wiring diagram, the power supply cannot be connected in reverse. Although there is a protective circuit, it cannot be connected in reverse for a long time

3. The product uses a voltage regulator (5V module is without a voltage regulator) to generate slight heat, which is a normal phenomenon. Long term operation of the relay also results in normal heating, which is a normal phenomenon

Package Includes:

• 1x 5V 12V 24V Single Self Locking Latching Bistable Interlock Relay Module (Select module voltage)

(No retail packaging / instructions )
