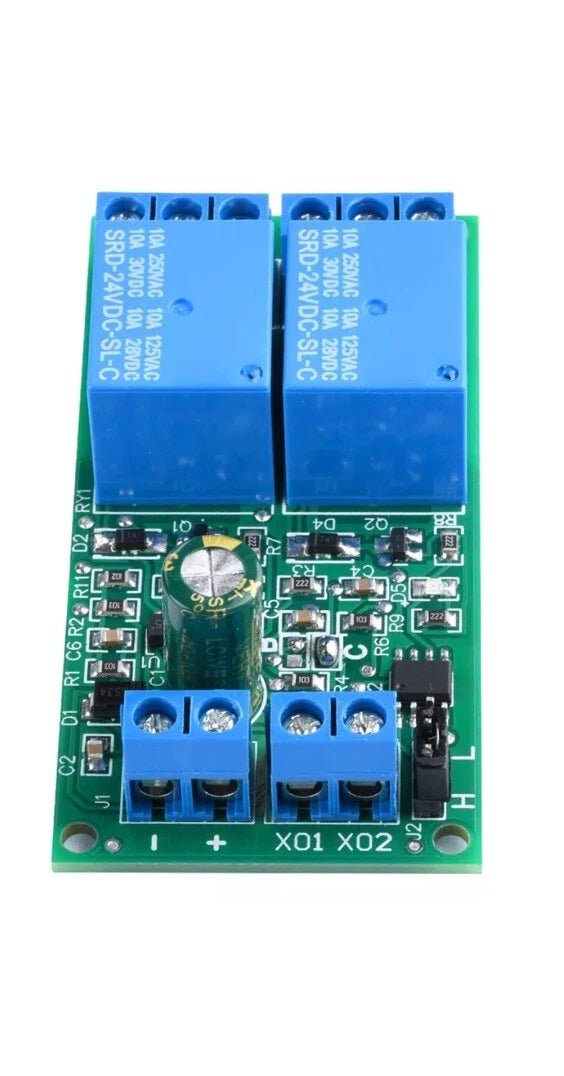

5V 12V 24V Dual Double Self-Locking Interlock Latching Relay Module High / Low

5V 12V 24V Dual Double Self-Locking Interlock Latching Relay Module High / Low

NOTE: I cannot provide support about the product operation or wiring. See the description below and photos for all available information.

This is a latching relay. When trigger signal received the relay will permanently hold until another signal is received.

Features:

1. There are three voltage options available: DC5V/12V/24V, and the appropriate DC voltage can be selected according to the needs.

2. Supports multiple input methods such as buttons, voltage levels, sensors, etc.

3. Supports switching between high and low level modes.

4. Power supply with positive and negative reverse protection.

5. Widely used, the interlock/self-locking relay module supports multiple ways to trigger and switch relays.

Parameter:

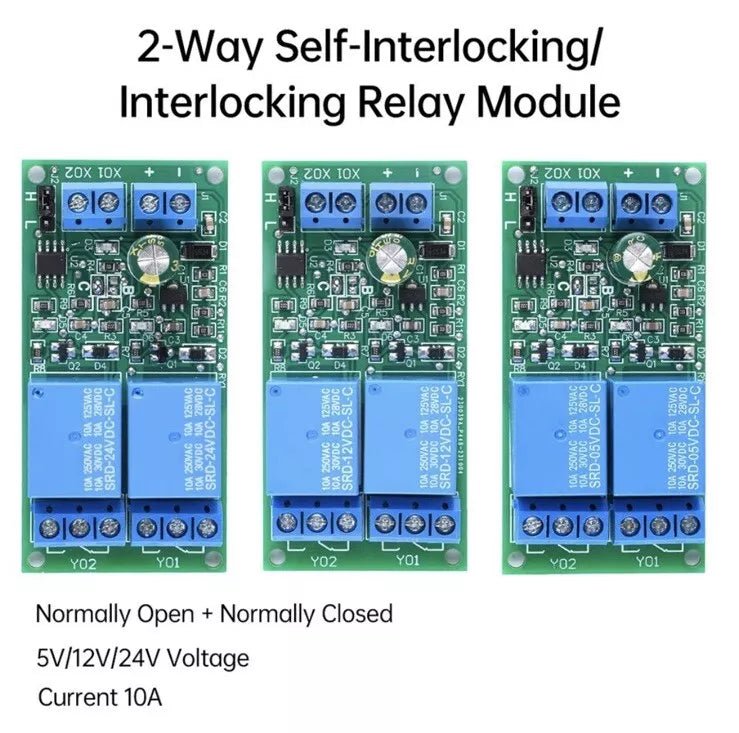

Name: Two way self-locking/interlocking relay module

Mode: interlock+switchable mode

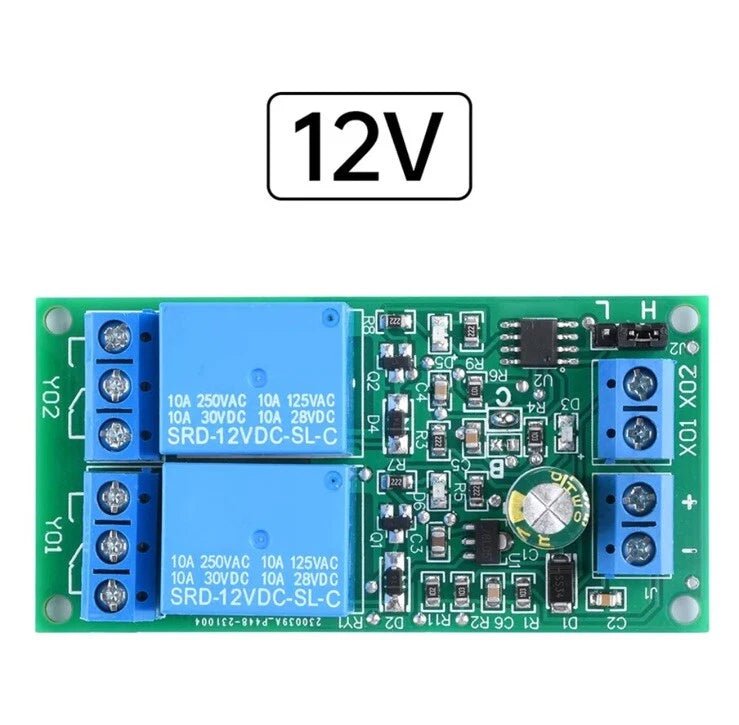

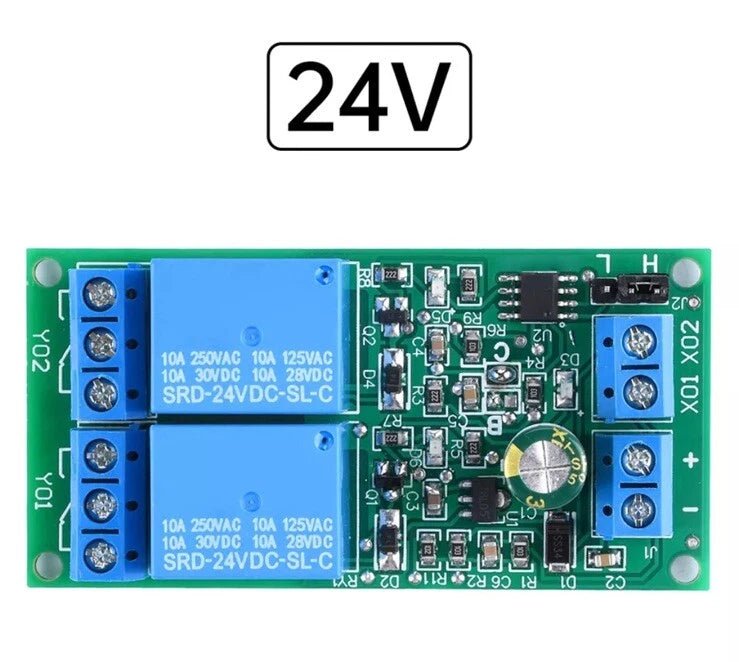

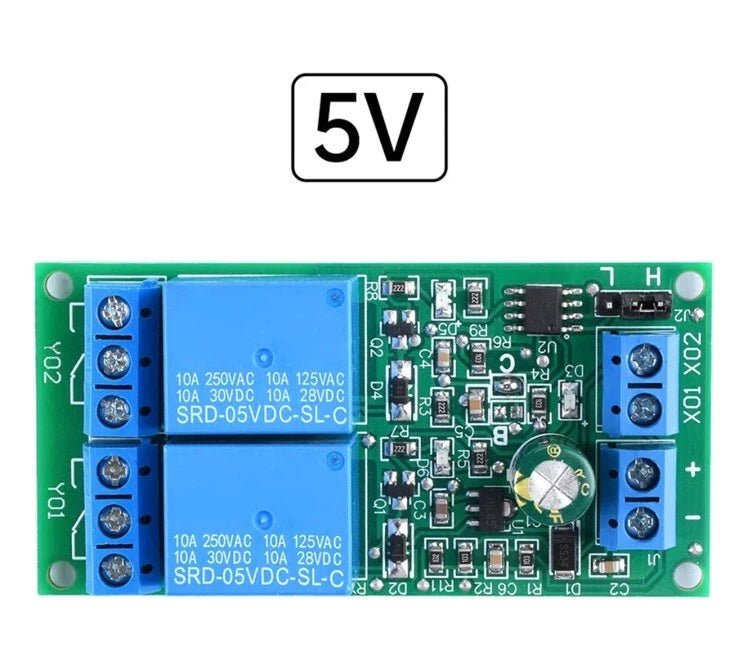

Voltage: Three specifications available: DC5V/DC12V/DC24V

Output form: 2-way relay contacts normally open+normally closed

Output current: 2 circuits of 10A

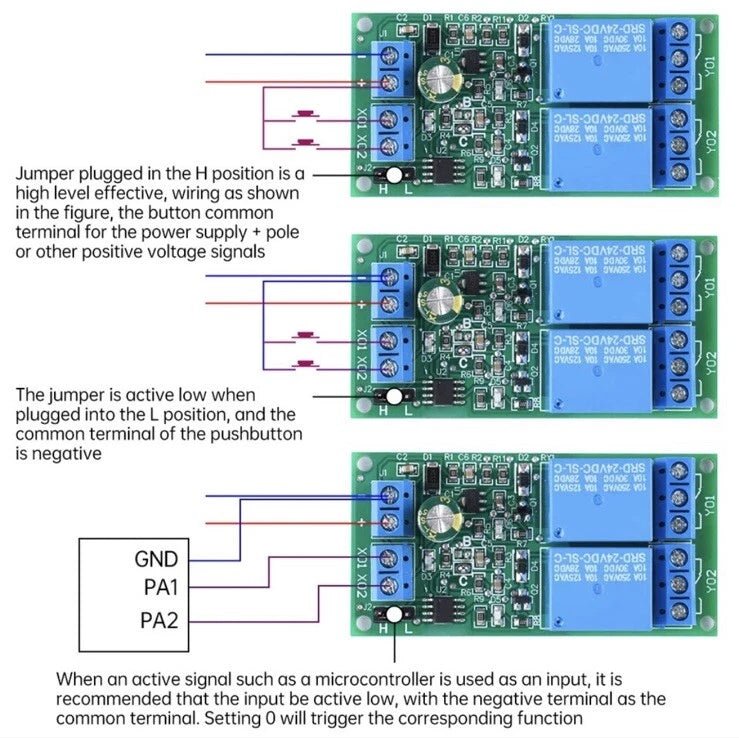

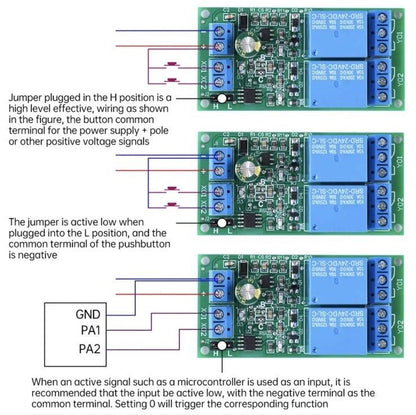

Input methods: buttons, level voltage, sensors, etc. High and low level methods can be switched

Response speed: 25mS

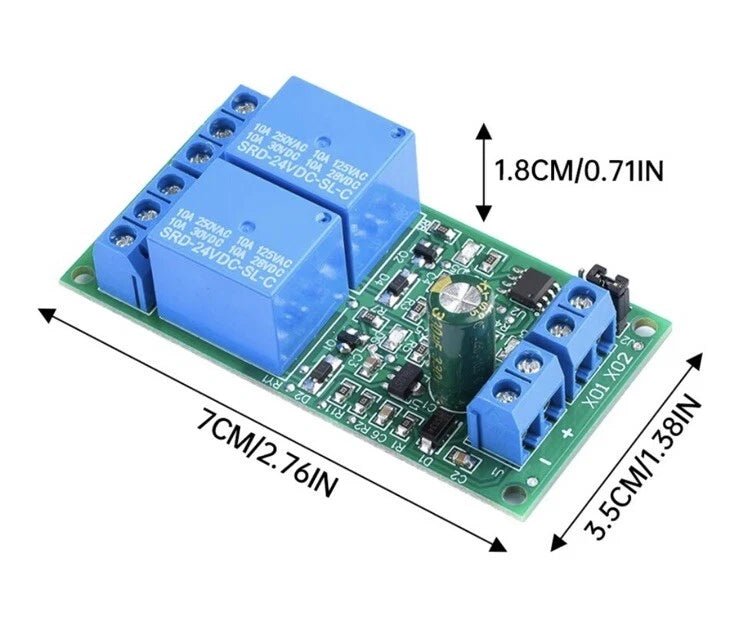

Size: 70MM * 35MM * 19MM

Aperture: 2.8MM

Protection: With power supply positive and negative reverse protection

Interlock+switchable mode: This mode has two interlocks and can be turned off. If input 1 triggers, L1 will work, and L2 will disconnect. At this time, if input 1 triggers again, L1 will also shut down. Same goes for both routes.

Package Includes:

• 1x Dual Double Self-Locking Interlock Latching Relay Module High / Low (select voltage)

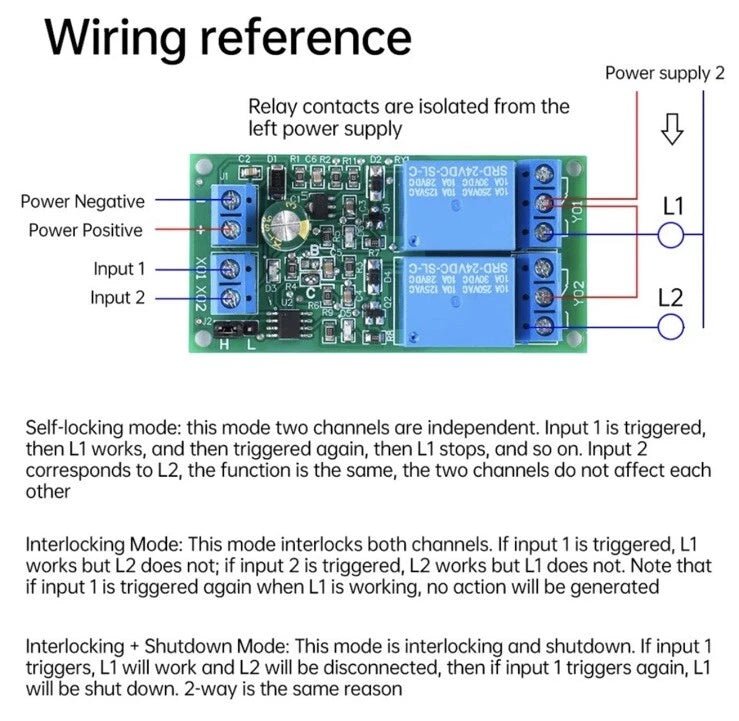

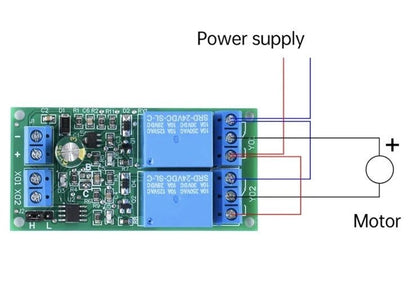

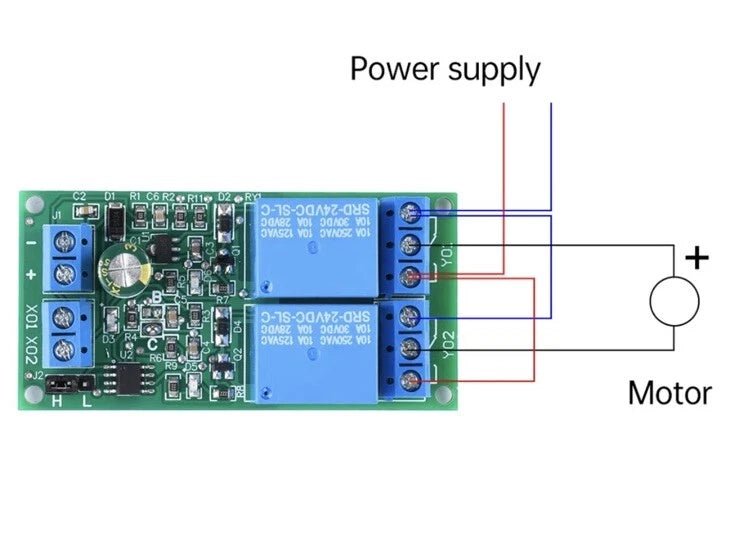

(No retail packaging. No manual included, see photos for wiring.)
